Cell parameters
| Cell type | LFP |
| Cell capacity | 315Ah |
Pack parameters
| Cell configuration | 1P104S |
| Pack rated voltage | 332.8V |
| Pack rated energy | 104.832kWh |
Rack parameters
| Rack battery configuration | 1P416S |
| Pack quantity | 4 |
| Rack rated energy | 419.328kWh |
System parameters
| System battery configuration | 12P416S |
| Rated energy (BOL) at DC side | 5031kWh |
| System output voltage range | 1164.8Vdc-1476.8Vdc |
| Rate for charging and discharging | ≤0.5P |
| Dimensions (W * H * D) | 20ft (6058mm * 2896mm * 2438mm) |
| Weight | 43t |
| Ingress protection rating | IP55 |
| Anti-corrosion grade | C4 |
| Operating ambient humidity | 0%-95% (non-condensing) |
| Operating ambient temperature | -20°C -55°C (derated over 45 °C) |
| Max. operating altitude | 4000m (derated above 2000m) |
| Cooling method | Liquid-cooling |
| Fire protection | Aerosol + combustible gas detection + ventilation + water extinguishing system |
| Communication interface | LAN |
| Communication protocol | Modbus TCP |
| Certification | IEC62619, IEC63056, IEC62477, EN61000, UL1973, UL9540A, UN38.3 |
Key Highlights
Enhanced Safety
Triple-layer fire protection ensures early detection, accurate spraying, and rapid suppression.
Fire monitoring powered by big data analytics features comprehensive surveillance.
Predictive algorithms identify risks early for rapid,sytemwide response.
Cost Efficiency
315Ah LFP cells with high energy density extend cycle life and reduce cost per kWh by 30%.
5MWh capacity in a standard 20ft container.
Side-by-side arrangement reduces land footprint by over 40%.
Versatile Deployment
Adaptable topology supports renewable integration, grid stability, and commercial operations.
Modular design enables rapid deployment and flexible configuration.
Related Cases

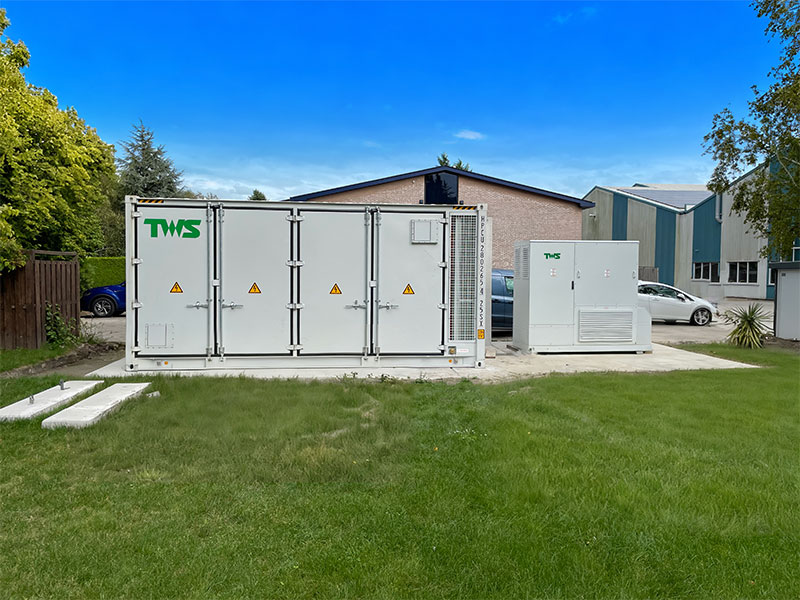

1.72 MW / 5 MWh
Horticulture
Acts as a backup generator to keep critical systems running during outages and lowers electricity bills by storing cheap solar power.
