Cell parameters
| Type | LFP 315 Ah |
| Cell configuration | 1P260S |
| Rated energy at DC side | 262 kWh |
| Voltage range | 728V~923V |
PCS parameters
| Rated output power | 125 kW |
| Max. output power | 138kW |
| THDi | <2% (rated power) |
| Rated power grid voltage | 230Vac/400Vac |
| Allowable voltage deviation | -15%~+15% |
| Max. current | 200A |
| Rated power grid frequency | 50Hz/60Hz (which can be set) |
| DC component | <0.5% |
| Overload capacity | 110% long-term |
System parameters
| Dimensions (W*D*H) | 950mm*1400mm*2330mm |
| Weight | 2600kg |
| Ingress protection rating | IP55 |
| Auxiliary power supply | Self-powered |
| Anti-corrosion grade | C4-M |
| Operating ambient humidity | 0%~95% (non-condensing) |
| Operating ambient temperature | -20°C~55°C (derated over 45 °C) |
| Max. operating altitude | 4000m (derated above 2000m) |
| Cooling method | Liquid-cooling |
| Fire protection | Aerosol + combustible gas detection + ventilation + water extinguishing system |
| Communication interface | LAN |
| Communication protocol | Modbus TCP |
Key Highlights
Adaptive To Harsh Environments
Resists extreme cold and heat
Intelligent internal dehumidification
prevents condensation
Modular Design For Easy Construction

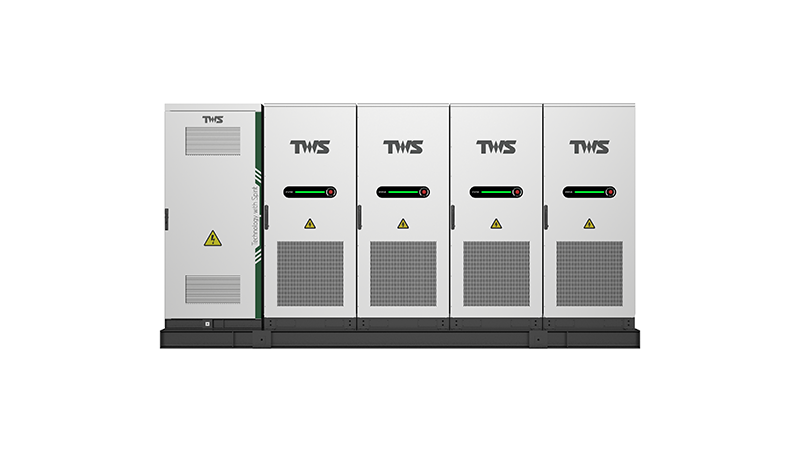

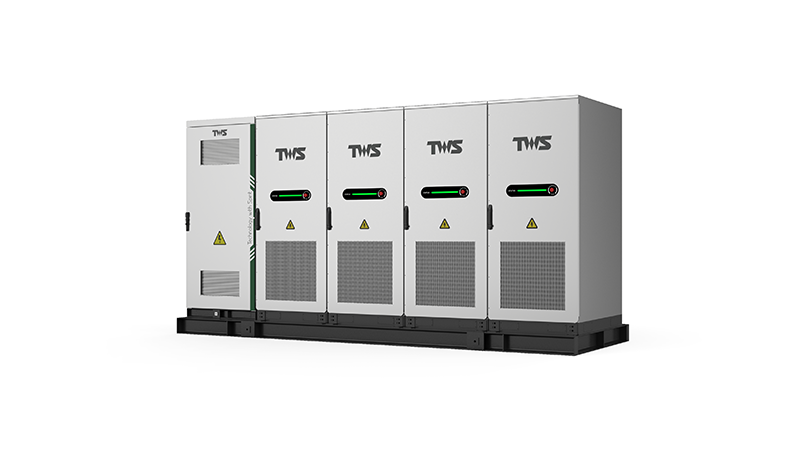

Allows parallel connection of multiple cabinets; Easy expansion and centralized control
EMS generates optimal operation strategy; Factory pre-commissioned;
Plug and play on site
Good-Quality Cells
315Ah cells ensure superb safety and long life cycle
High energy efficiency (≥95%)
Small Size, Big Energy
High Energy Density （21% greater)
Compact footprint: 1.28 m²
Smart And User-Friendly
Accessible to the cloud platform for remote monitoring.
Smart and wireless; Supports remote upgrades
Related Cases
2.5 MW / 5.24 MWh
Food Processing
Uses stored energy to lower electricity demand, significantly reducing the monthly bills for high-energy factory machines.
Balkan Peninsula
1.63 MW / 3.4 MWH
Manufacturing Facility
Built to resist corrosion and extreme temperatures (-20°C to 55°C), making it perfect for industrial operations.
