Zellparameter
| Cell type | LFP |
| Cell capacity | 314/315Ah |
Pack parameters
| Zellkonfiguration | 1P104S |
| Pack rated voltage | 332.8V |
| Pack rated energy | 104.499 /104.832 kWh |
Rack parameters
| Rack battery configuration | 1P416S |
| Pack quantity | 4 |
| Rack rated energy | 417.996 / 419.328 kWh |
Systemparameter
| System battery configuration | 12P416S |
| Rated energy (BOL) at DC side | 5015 kWh |
| System output voltage range | 1164.8Vdc-1476.8Vdc |
| Rate for charging and discharging | ≤0.5P |

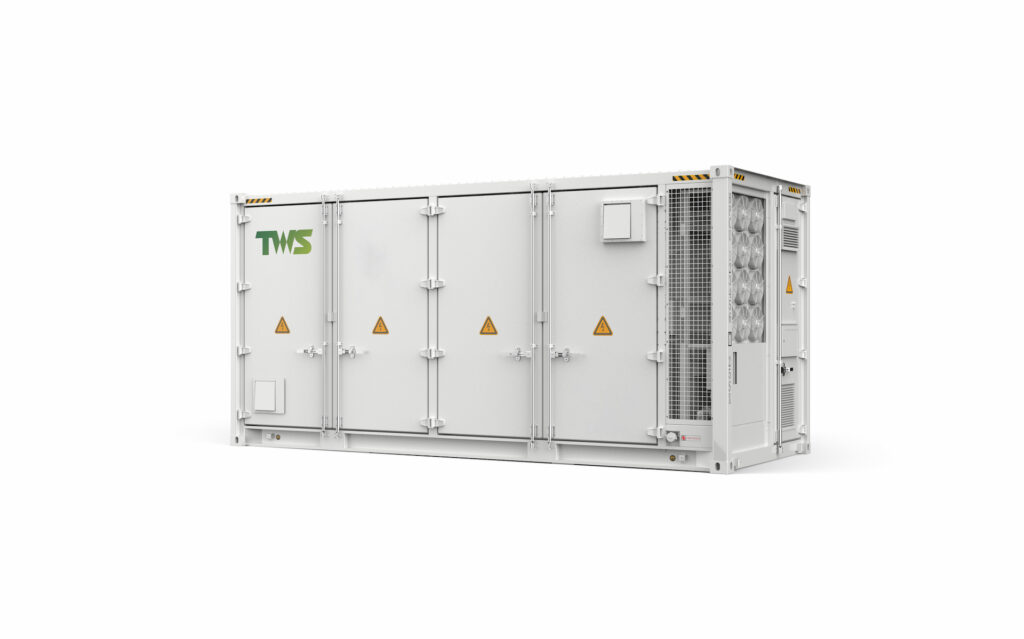

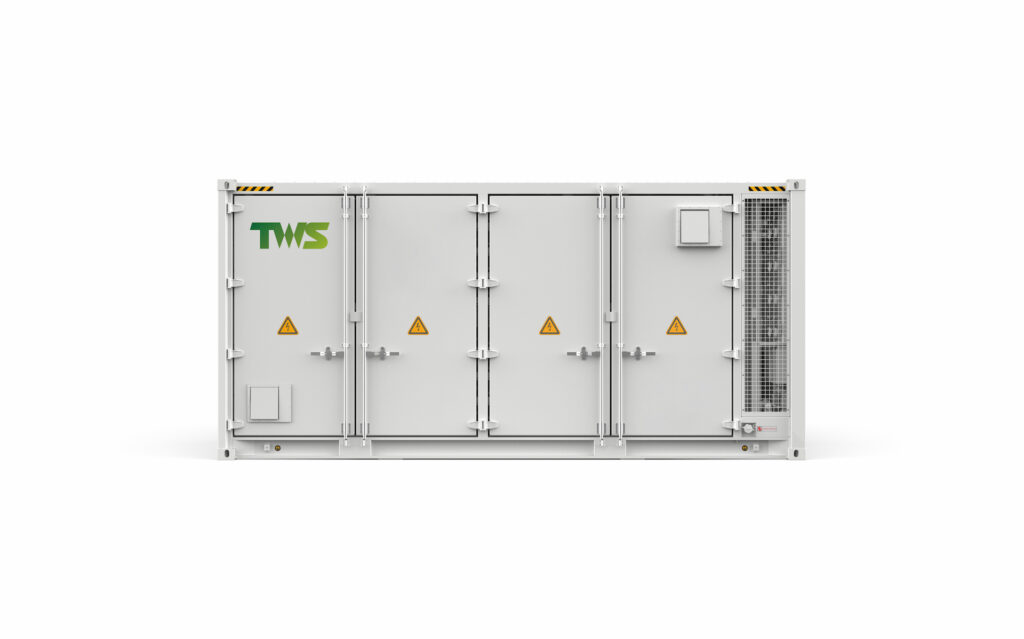

| Dimensions (W * H * D) | 20ft (6058mm * 2896mm * 2438mm) |
| Gewicht | 43t |
| Schutzart | IP55 |
| Anti-corrosion grade | C4 |
| Betriebsumgebungsfeuchtigkeit | 0%-95% (non-condensing) |
| Betriebsumgebungstemperatur | -20°C -55°C |
| Max. Betriebshöhe | 4000 m |
| Kühlmethode | Flüssigkeitskühlung |
| Brandschutz | Aerosol + brennbares Gas + Lüftung + Wasserlöschanlage |
| Kommunikationsschnittstelle | LAN |
| Communication protocol | Modbus TCP |
| Certification | IEC62619, IEC63056, IEC62477, EN61000, UL1973, UL9540A, UN38.3 |
Wichtigste Highlights
Enhanced Safety
Triple-layer fire protection ensures early detection, accurate spraying, and rapid suppression.
Fire monitoring powered by big data analytics features comprehensive surveillance.
Predictive algorithms identify risks early for rapid,sytemwide response.
Cost Efficiency
314/315Ah LFP cells with high energy density extend cycle life and reduce cost per kWh by 30%.
5MWh capacity in a standard 20ft container.
Side-by-side arrangement reduces land footprint by over 40%.
Versatile Deployment
Adaptable topology supports renewable integration, grid stability, and commercial operations.
Modular design enables rapid deployment and flexible configuration.
